This screen allows you to enter an elementary shape (circle, circle with tolerance rings,

ellipse, square, rectangle, regular polygon), which thenis drawn again and again on the

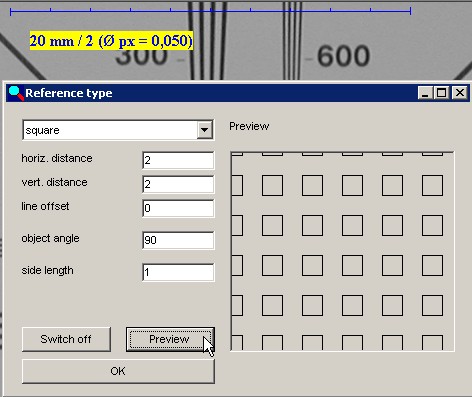

screen until the whole area of the screen is filled. The input screen is as shown below.

The fields Horiz. spacing, Vert. spacing and Line offset define how the elementary

objects are arranged on the screen.  For the objects "Square", "Rectangle" and

"Regular Polygon" a skew angle for the object can also be entered related to the

individual lines.The two last fields are used depending on the object selected.

Circle:

enter the diameter

Circle with tolerance rings:

enter the diameter of the circle, - enter the tolerance

towards the bottom, + enter the tolerance towards the top

Ellipse:

enter the two diameters

Square:

enter the length of the sides

Rectangle:

enter the two side lengths

Regular polygon:

enter the diameter and the number of corners

The Preview button shows you a preview in the small window

The OK button switches on the selected function and leaves thisscreen

The Close button closes the multiform mask and leaves the screen.
