Tolerance rings

Please note the system-dependent decimal separator at the input.Measure

program recognises both point and comma as the decimal separator. When

data is output the decimal separator is again shown as the one set by the

country code in the system.

configured in the following window after being accessed from this menu point.

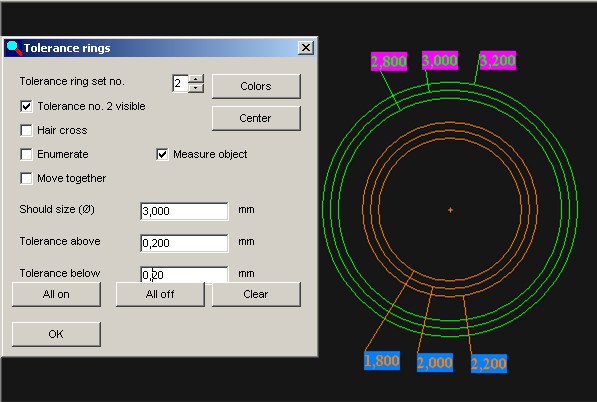

In the "Tolerance rings" window you can use the click button at the top to select

the tolerance rings 1 to 12, use the check boxes to display them and assign a hair

cross and number to them. The desired dimension entered is input as a diameter

and the tolerances as values related to the desired dimension.Different colours can

be assigned to the individual tolerance ring sets by using the "Colours"

button.

Object measurement can be switched on and off. If, at the start, the tolerance rings are

outside the field of view they can be moved to the centre of the image using the "Centre"

button. The visible tolerance ring sets can be moved together with the cursor buttons

after using the click button "Move together", or by dragging them in centre with the mouse.
